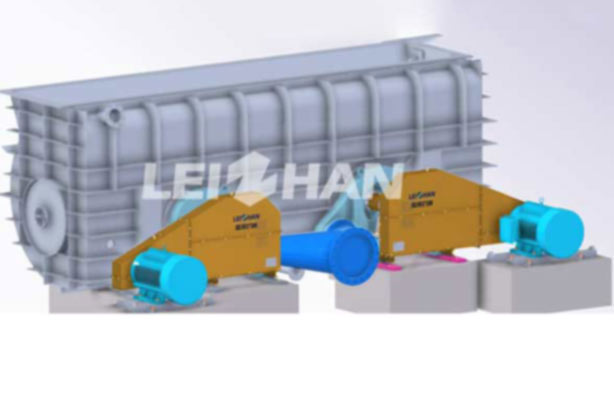

SZS Series Broken Pulper
The SZS series broken paper pulper is mainly used to deal with the broken paper generated by various paper machine pressing, calendering, reeling and other positions.
Technical Data of ZSZ Series Broken Pulper
| Model | SZS1 | SZS2 | SZS3 |
| Diameter of Rotor(mm) | 750 | 1000 | 1300 |
| Accepts Pulp Inlet(DN) | 300 | 400 | 500 |
| Volume of Pulp Chest(m³) | 5.5-15 | 14-33 | 31.5-80 |
| Width of Pulp Chest(mm) | 2500-5000 | 3500-6000 | 4500-8000 |
| Pulp Concentration(%) | 3-5 | ||
|---|---|---|---|
| Mesh size(mm) | 10-24 | ||
| Motor Power(kw) | 45-160 | 90-355 | 200-630 |
Features
1. The optimized rotor shape is used to achieve a high turbulence effect with the lowest power consumption.
2. The high suction rate greatly increases the friction between the fibers, so that the pulp disintegration does not only rely on the gap between the rotor and the sieve plate.
3. The action of mechanical force. At the same time, it is supplemented by a new pulp tank structure, which improves the contact frequency between the rotor and the pulp to a certain extent.
Contact us or call +86 371 55129198 for more information.
