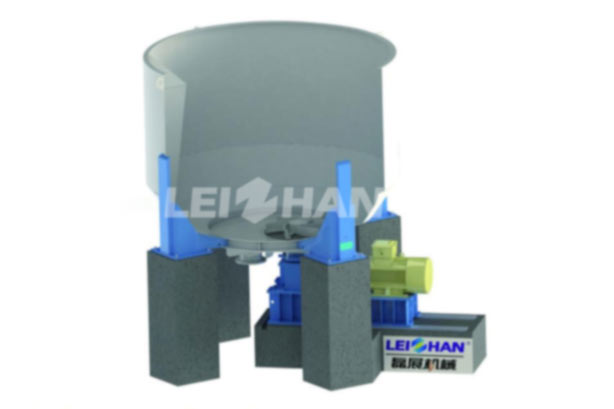

PX Series Eccentric Pulper
PX Series Eccentric Pulper is mainly used to pulp all kinds of waste paper, virgin pulp board and paper machine broken paper.
>> PDF Download
Technical Data of PX Series Eccentric Pulper:
| PX-V Eccentric Pulper | |||||||||||
| Model | PX15-V | PX20-V | PX25-V | PX30-V | PX35-V | PX40-V | PX50-V | PX65-V | PX85-V | PX107-V | |
| Nominal Volume(m³) | 15 | 20 | 25 | 30 | 35 | 40 | 50 | 65 | 85 | 107 | |
| Treatment Consistency(%) | 4-8 | ||||||||||
| Capacity(t/d) | 60-90 | 80-120 | 120-170 | 140-190 | 10-230 | 220-290 | 300-400 | 400-550 | 600-700 | 800-1000 | |
| Motor Power(KW) | 110 | 132 | 160 | 220 | 250 | 280 | 355 | 500 | 630 | 800 | |
| PX-R Eccentric Pulper | |||||||||||
| Model | PX20-R | PX25-R | PX30-R | PX35-R | PX40-R | PX52-R | PX73-R | PX95-R | PX120-R | PX175-R | |
| Nominal Volume(m³) | 20 | 25 | 30 | 35 | 40 | 50 | 65 | 85 | 120 | 175 | |
| Treatment Consistency(%) | 4-8 | ||||||||||
| Capacity(t/d) | 140-180 | 180-230 | 230-280 | 270-320 | 300-370 | 400-450 | 550-600 | 650-750 | 800-1000 | 1300-1500 | |
| Motor Power(KW) | 160 | 185 | 250 | 280 | 315 | 400 | 560 | 710 | 900 | 1300 | |
Features
1. Rotor and sieve plate with eccentrically design, double cone structure.
2. Lower energy consumption, 20% energy saving than traditional pulper.
3. The twisted rope of the Ragger has a wider movement area, the twisted rope is far away from the rotor, the rotor load is smaller, and the risk of twisted rope breakage is reduced.
